Zone Jeep Wrangler JK 07-17 4 door 3" Suspension Lift Kit W/ Fox Performance 2.0 (Fits: Jeep)

  • Sale
  • $ 1,149.00
  • Regular price $ 1,500.00


Prepare yourself for the perfect combination of off road performance and on road handling. This 3" JK system offers dramatic improvement in both ground clearance as well as wheel travel. With 3" of lift, you can clear those 35's with room to twist as well as use your Jeep for a daily driver. Zone coil springs are designed so they can be totally smashed flat and still return to their original height, so you don't have to worry about your coils sagging!



Prepare yourself for the perfect combination of off road performance and on road handling. This 3" JK system offers dramatic improvement in both ground clearance as well as wheel travel. With 3" of lift, you can clear those 35's with room to twist as well as use your Jeep for a daily driver. Zone coil springs are designed so they can be totally smashed flat and still return to their original height, so you don't have to worry about your coils sagging!



Featured Technology & Benefits

  • Coil springs designed to give a full 3" of lift while maintaining a factory style ride. Our coils are 2door/4door specific, so be sure to select the proper application.
  • Rear extended sway bar links are included. These links come with urethane bushings to increase performance and reduce body roll. The factory rear links are then used in the front.
  • A rear track bar relocation system is included to perfectly center the axle under your JK
  • 2" bump stop extensions are included to protect your vehicle while still increasing wheel travel
  • Brake line relocation brackets are supplied to allow for the dramatic increase in wheel travel
  • New Zone front and rear shocks are included that are valved specifically for your JK

Important Notes!

  • This complete suspension lift system is designed for 2door and 4 door models
  • WIll work on Rubicon models.
  • The coil springs are 2 door and 4 door specific. Be sure to choose the correct application when ordering.
  • Factory wheels cannot be re-installed due to rear sway bar link interference.
  • 2012-17 models using the stock front driveshaft require exhaust extension kit J5305 listed in the accessories.
  • Optional front alignment cam locks recommended if using stock (or stock length) front lower control arms. Alignment cam locks add 2 degrees of caster when used on stock length control arms

This product fits the following applications:

  • 07-17 Jeep Wrangler JKU 4WD Gas

Quick Specs

  • Front Lift Height: 3″
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 3″
  • Rear Lift Method: Coil Springs
  • Install Time Hrs: 4-5
  • Difficulty Level 1-5: 2
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5
  • Max Tire Size: 35″ x 12.50″

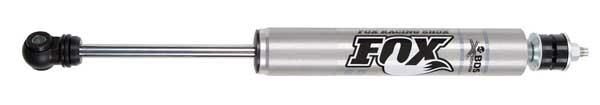

THIS KIT INCLUDES FOX PERFORMANCE IFP 2.0 SERIES SHOCKS

The 2.0 Performance Series IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable offroad handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific vavling provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions.





APPLICATION SPECIFIC VALVING

  • Fox and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. The basic shock design is based on Fox Racing Shox race products, but re-designed to turn your BDS equipped truck or Jeep into an offroad machine.

HEAT-REDUCING DESIGN

  • Cold-forged, metal-impacted 6061 T6 aluminum shock body dissipates heat three times faster than a conventional steel body shock. The 2.0 Performance Series shock runs as cool as a 2.5 diameter shock on the same application.
  • FOX Racing Shox formulated race shock oil developed for ultimate performance at variable temperatures.


TOUGH FINISH

  • CNC machined aluminum components
  • Heavy-duty 5/8" chrome shafts are induction case hardened to over 55 Rockwell C, virtually eliminating scratches caused by rust and debris.

FADE-FREE PERFORMANCE

  • The Internal Floating Piston (IFP) design separates shock oil from the high pressure nitrogen charged gas chamber, eliminating oil aeration and cavatation, while providing a predictable ride — capable of handling the roughest conditions with fade-free performance.
